Transportation App Development Guide: How to Build an App Like Transit
This guide covers transportation app development for passenger movement. It explains the six app types, which data feeds and APIs decide your architecture, what each build tier costs, and the step-by-step process. Transit is used as the reference product throughout.
Summarise with AI
Short on time? Let AI do the work. Get the key points.
Key Takeaways
- US public transit ridership reached 7.66 billion trips in 2024, the fifth consecutive year of growth and up 59% since 2021, according to APTA.
- Transportation apps split into six build types. Public transit, bus and coach, rail and metro, paratransit and NEMT, multimodal MaaS, and fleet or shuttle. Pick the type before you pick features.
- GTFS is the entry requirement, not a feature. Static GTFS gives you schedules. GTFS Realtime gives you live vehicle positions. Without both, your arrival times are estimates.
- A basic transportation app runs $25,000 to $45,000 and ships in 3 to 5 months. Adding fare collection and multimodal routing moves it past $80,000.
- Fare collection changes your compliance load. Once you take payment, you inherit PCI DSS, refund handling, and reconciliation with the agency’s existing farebox.
- Team location moves cost more than any feature. Offshore rates run $25 to $45/hr against $80 to $150/hr in the USA for the same scope.
Transportation apps fail on data, not design.
A wrong arrival time, an outdated route, or a blank screen underground can quickly frustrate riders. Behind each of these problems are transit feeds, real-time data, maps, APIs, and infrastructure that need to work together reliably.
The approach also depends on what you are building. Bus, rail, paratransit, and multimodal apps have different data and integration needs.
In this guide, I’ll explain how to build a transportation app like Transit, covering app types, essential features, GTFS and real-time integrations, technology choices, development costs, timelines, and the build process.
Quick Answer
Transportation app development means building software that helps people plan, track and pay for journeys on buses, trains, metros, and multimodal networks. It connects to GTFS schedule feeds and live vehicle data, then presents routes, arrival times, and fares in one interface. A basic build takes 3 to 5 months and starts around $25,000.
What Is Transportation App Development?
Transportation app development covers software that moves people rather than goods. It spans public transit apps, bus and rail operators, paratransit services, and multimodal platforms that combine several modes into one journey.
Most of these products sit inside a wider travel app development build, where transit feeds are one source among flights, hotels, and local operators. That matters for scoping. A single-city transit app talks to one agency. A platform that carries transit alongside other modes has to hold several data contracts at once, each with its own refresh rate and reliability.
A travel app sells inventory it can query on demand. A transportation app depends on schedule feeds and live vehicle positions published by agencies on their own terms, at their own quality level, on their own timeline. If you are weighing the wider category first, our travel app development guide covering types, features, and cost breaks down booking, planning, and OTA-style builds.
What Types of Transportation Apps Can You Build?
Transportation app development covers six product types. Each connects to different data, serves a different buyer, and prices differently.
| Type | Who buys it | Core data source | Typical cost |
|---|---|---|---|
| Public transit | Transit agencies, mobility startups | GTFS + GTFS Realtime | $25,000-$45,000 |
| Bus and coach | Operators, intercity carriers | Operator schedules, AVL | $30,000-$55,000 |
| Rail and metro | Rail operators, city authorities | Signalling feeds, GTFS | $40,000-$90,000 |
| Paratransit and NEMT | Healthcare providers, agencies | Booking system, eligibility data | $35,000-$70,000 |
| Multimodal and MaaS | Cities, mobility aggregators | Multiple GTFS + micromobility APIs | $80,000-$200,000+ |
| Fleet and shuttle | Corporates, campuses, airports | Internal AVL and rostering | $30,000-$60,000 |
Most projects start as one type and get asked to become another halfway through. The common drift is public transit picking up fare collection, which adds PCI DSS compliance and reconciliation with the agency’s existing farebox. Settle it in discovery. Campus and corporate shuttle builds sit closer to on-demand app development than to transit.
One clarification worth making before you scope. If your problem is optimizing vehicle routes for deliveries, field teams, or a freight fleet rather than helping passengers catch a bus, that is a different build with different data. Our route planner app development guide covers stop sequencing, driver assignment, and fleet routing logic.

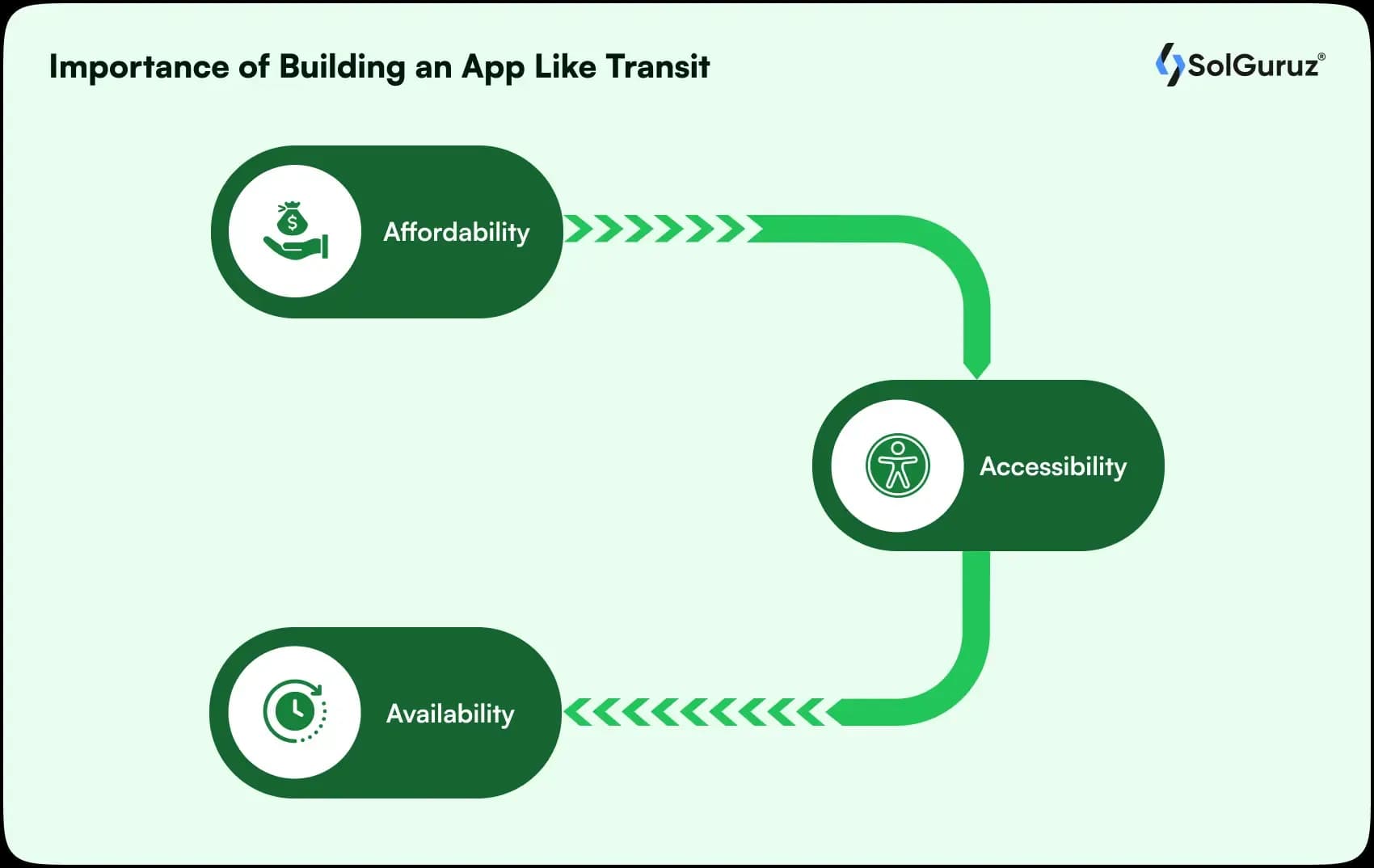

Why Build a Transportation App Now?
US transit ridership has grown for 5 consecutive years, reaching 7.66 billion trips in 2024. Public transportation is also a $93.4 billion industry, with more than 430,000 people employed directly.
But growing demand does not always mean a good digital experience. Many transit agencies still rely on outdated apps, limited real-time information, or websites that are difficult to use on the go.
At the same time, agencies are making more transportation data available through standards such as GTFS and GTFS Realtime. This creates an opportunity to turn existing data into better rider experiences with live tracking, route planning, service alerts, and multimodal journeys.
For businesses and transportation providers, the opportunity is not simply to build another map app. It is to create a reliable digital layer that makes public transportation easier to discover, plan, and use.

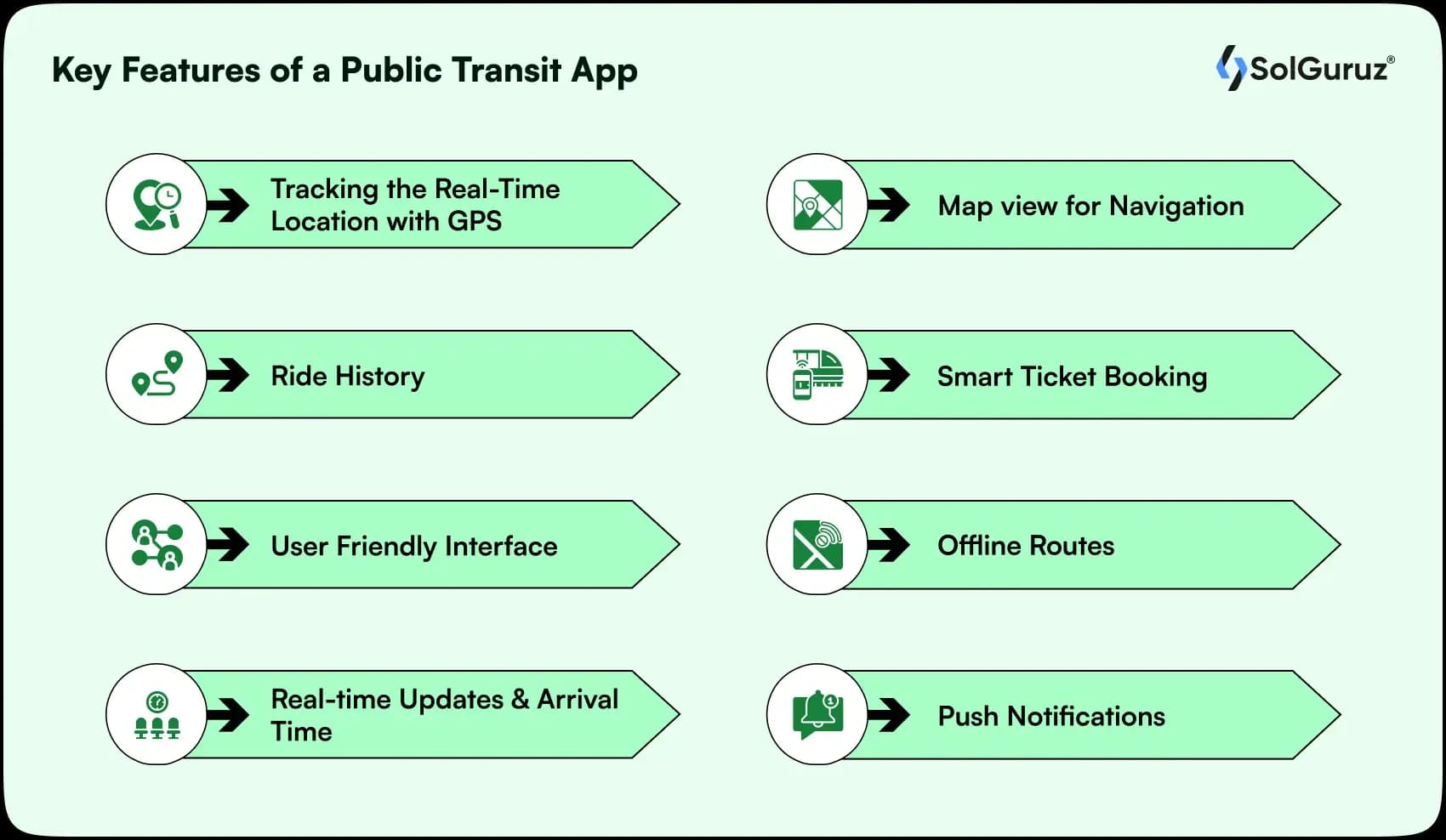

Key Features of a Transportation App
A transportation app can have three main parts: the rider app, driver interface, and agency dashboard. The features you need depend on whether you are helping riders use an existing transit network or managing the network yourself.
Rider App Features
These are the features most transportation apps need for the first release.
1. Live Vehicle Tracking
Show riders the real-time location of the bus or train they are waiting for.
Positions usually come from the agency’s AVL system through the VehiclePositions feed in GTFS Realtime. Without this feed, the app can only show scheduled times.
2. Journey Planner
Help users find the best route from their origin to their destination, including transfers, walking time, and total travel time.
For complex transit networks, teams often use OpenTripPlanner instead of building the routing engine from scratch.
3. Real-Time Arrivals
Show live arrival countdowns using GTFS Realtime for delays, locations, and alerts. For high-frequency routes, use headway, the gap between vehicles, instead of timetables. Choose the right layout for frequency- or schedule-based routes.
4. Offline Access
Let riders save routes, schedules, and map information for times when they have little or no internet connection.
This is especially useful in underground stations, rural areas, and places with weak network coverage. Offline support should be planned during development, not added at the end.
5. Service Alerts and Notifications
Send riders updates about delays, cancellations, route changes, and other disruptions.
The system should send relevant alerts based on the rider’s route or saved trips rather than sending every network-wide notification.
6. Stop and Route Search
Let users find nearby stops, search routes, and view complete schedules.
Transit stops, routes, and route shapes usually come from GTFS data. Map APIs can then provide the map and location experience around that data.
7. Saved Trips and Ride History
Allow users to save favourite routes and stops for quick access and keep a history of previous journeys.
These features also support personalization later, but stored journey data should be handled with appropriate privacy and retention controls.
8. Fares and Mobile Ticketing
Show fares and, where supported, let riders purchase and display tickets through the app.
Showing fare information is relatively simple, but accepting payments adds requirements such as fare rules, reconciliation, and PCI DSS compliance.
Emerging GTFS capability: Trip and Stop Modifications allow agencies to share temporary changes such as detours and relocated stops. Supporting these updates can make the app more useful during service disruptions.
Driver App Features
The driver app focuses on daily operations, helping drivers follow assigned trips, report issues, and stay connected with dispatch.
1. Driver Login and Profile
Drivers can securely log in and view their assigned vehicle, route, shift, and schedule.
2. Route and Trip Assignment
Show drivers their assigned routes, stops, departure times, and upcoming trips.
3. Turn-by-Turn Navigation
Provide navigation between stops and highlight the planned route, upcoming stops, and important deviations.
4. Trip Status Updates
Let drivers mark trips as started, delayed, completed, or cancelled so the agency and riders receive updated information.
5. Passenger and Stop Information
Show upcoming stops, boarding information, accessibility details, and other operational instructions.
6. Incident Reporting
Allow drivers to report breakdowns, accidents, delays, road closures, or other incidents directly from the app.
7. Vehicle Status
Drivers can report vehicle issues, maintenance needs, fuel or charging status, and other problems before or during a shift.
8. Communication
Provide a secure channel for drivers to receive important messages and updates from dispatch.
Together, these features give drivers the tools they need to manage trips efficiently while keeping agencies informed in real time.
Agency Dashboard
If you are building the platform for a transit agency, the dashboard becomes an important part of the product.
| Feature | What It Does |
| Live Network View | Shows vehicles, routes, and current service status |
| On-Time Performance | Tracks scheduled versus actual service |
| Service Alert Publishing | Sends disruption updates to affected riders |
| Feed Health Monitoring | Detects missing stops, stale positions, and data errors |
| Ridership Analytics | Shows usage by stop, route, and time |
| NTD Reporting Export | Prepares ridership and service data in the format the National Transit Database requires |
Feed health is just as important as app uptime. An API can return a successful response while still sending outdated vehicle positions, so the dashboard should monitor the freshness and quality of transit data.
Features That Move the App to the Next Tier
Once the core rider experience works reliably, you can add more advanced capabilities:
- Multimodal journey planning across multiple transit agencies
- Fare capping and account-based ticketing
- Paratransit and NEMT booking using demand-responsive transit data
- Crowding predictions using APC data. Automatic Passenger Counters are sensors at vehicle doors that count boardings and alightings, which is what lets the app tell a rider a bus is already full
- Multi-language support for tourist-heavy networks
These features can add significant development effort because they often require new data sources, complex integrations, or additional compliance requirements. They are usually better suited for a later phase rather than the first release.
Which Data Feeds and APIs Do You Need?
This is the section that decides your timeline. Everything else is engineering you control.
| Source | What it gives you | Notes |
|---|---|---|
| Static GTFS | Routes, stops, timetables, fares | Usually published openly by the agency |
| GTFS Realtime | Live vehicle positions, trip updates, service alerts | Often not public. Formal request, can take weeks |
| AVL | Raw vehicle location from the agency fleet system | Direct access where no GTFS-RT feed exists |
| Mapping APIs | Base map, geocoding, walking directions | Google Maps or Mapbox. Bills per request |
| Fare and payment | Ticket purchase, capping, reconciliation | Brings PCI DSS into scope |
| Micromobility APIs | Bike and scooter availability for multimodal | GBFS standard, one integration per operator |
Key Note: A data feed is simply a stream of information that an agency or service provides to your app. GTFS, or General Transit Feed Specification, is the open standard agencies use to publish scheduled transit information. GTFS Realtime adds live information such as vehicle locations, delays, and service alerts.
In our experience, GTFS Realtime access is the item most likely to slip a transit project. Agencies vary from an open endpoint to a six-week approval process, and it sits entirely outside your control. Start that conversation in week one.
Step-by-Step Development Process
A successful transportation app starts with a clear plan. The steps below help you define the right features, connect reliable transit data, build the app, and launch it with fewer surprises.
Step 1: Scope and Transit Research
Choose the city and transport modes you want to support, such as buses, trains, or both.
Define your target users, such as daily commuters, tourists, or occasional riders.
Step 2: Feature Prioritization
Start with core features such as live tracking, route planning, offline access, schedules, and delay alerts.
Decide early if you need payments or multimodal journeys, as both can increase the budget.
Step 3: UI/UX Design
Design for quick use, with clear arrival times, simple navigation, and easy access to saved routes.
Make sure the interface works well in bright sunlight, offline mode, and across different screen sizes.
Step 4: Data and API Integration
Connect GTFS for schedules and routes, and GTFS Realtime for live vehicle locations, delays, and alerts.
Start this process early because some transit agencies can take weeks to approve data access.
Step 5: Development
Build the data and API layer first, then connect it to the mobile app and maps.
Flutter or React Native can support the mobile app, while Redis can speed up frequently requested transit data.
Step 6: Testing and QA
Test with real transit data and real-world situations, not just sample data.
Check offline use, GPS accuracy, missing vehicle updates, delayed alerts, and conflicting agency data.
Step 7: Launch and Rollout
Start with one city and one transport mode before expanding to other networks.
Monitor route searches, failed results, user drop-offs, and data issues after launch.
Key Takeaway: Data access is often the biggest constraint, not development. Secure reliable transit feeds early to keep the rest of the project on track.
How Much Does Transportation App Development Cost?
Transportation app development can cost anywhere from $25,000 to $180,000+, depending on the number of cities, data integrations, features, and backend systems involved. A single-city MVP is much simpler than a full platform with payments and agency tools.
| Build type | Cost (USD) | Timeline |
|---|---|---|
| Single-city transit app (GTFS, routing, offline) | $25,000-$45,000 | 3-5 months |
| Multi-city or multimodal (several feeds, journey planner) | $45,000-$80,000 | 5-8 months |
| Full platform (fare collection, agency dashboard, analytics) | $80,000-$180,000+ | 8-14 months |
A single-city app can cover core features such as GTFS integration, route planning, live tracking, and offline access. Multi-city and full-platform builds add more feeds, complex journey planning, fare systems, dashboards, and analytics.
Disclaimer: These are indicative development rates and project costs. Actual pricing varies based on app complexity, integrations, team composition, location, and project requirements.
For a more accurate estimate, define the cities, transport modes, data feeds, and core features before choosing a development budget. If you need a team to build your transportation app, you can also hire mobile app developers with experience in real-time data, maps, APIs, and scalable app development.
Tech Stack
The right tech stack needs to handle maps, real-time vehicle data, large transit feeds, offline access, and location-based features without slowing down the rider experience.
| Layer | Options |
|---|---|
| Mobile | Flutter, React Native |
| Agency dashboard | React, Next.js |
| Backend | Node.js, Python with FastAPI |
| Geospatial database | PostgreSQL with PostGIS |
| Local storage | SQLite or Realm on device, for offline routes |
| Realtime layer | WebSockets or MQTT for live vehicle positions |
| Feed processing | GTFS parser plus a scheduled ingest job |
| Maps | Google Maps, Mapbox |
| Cloud | AWS, Google Cloud |
The geospatial database and the feed ingest job matter more here than the framework choice. Every arrival prediction depends on both.
How to Monetize a Transportation App
Different monetization strategies are used to gain revenue from a travel app. You can use:
1. Freemium model with premium features
You can provide some free services for users to utilize while creating a transit-like app. For advanced functionality, you can charge a reasonable price. By allowing users to utilize the app, this strategy expands the app’s target audience.
2. In-app advertisements
Another great way to earn revenue from the mobile application is to allow in-app advertising. You can charge a decent fee from those who want to advertise in your application.
3. Partnerships with local transit authorities
Local authorities increase the trust component. So, when you partner with local authorities, your app is exposed to more users, and its credibility increases.
The best approach is often a combination of these models, balancing user experience, recurring revenue, and partnerships without making essential transit information difficult to access.
How AI Can Help Build an App Like Transit?
AI can make a transportation app more useful by improving arrival predictions, route planning, alerts, personalization, and accessibility. The goal is not to add AI everywhere, but to use it where better predictions or automation can improve the rider experience.
| AI Feature | How It Helps | Benefits to Users | Example |
|---|---|---|---|
| Real-Time Arrival Predictions | Uses GPS + historical data to estimate accurate arrival times. | Reduced wait times, increased trust in public transit. | TripIt style smart notifications. |
| Dynamic Route Optimization | Recommends the fastest route based on traffic, delays, and user habits. | Personalized and time-saving commutes. | Alerting and rerouting the users in case of delays. |
| Smart Notifications & Alerts | Sends alerts for delays, cancellations, and service disruptions in real time. | Keeps users informed and in control. | Sending users alerts like “reaching in 10 mins” |
| Crowd Prediction & Capacity | Uses sensor and user data to predict crowded stations or vehicles. | Helps avoid overcrowded routes. | “There is a traffic jam ahead.” |
| Conversational AI | Assists users with route info, support, or accessibility. | Hands-free, easy navigation. | “Where is the nearest bus station or metro?” |
| Personalized Recommendations | Learns user behavior to offer favorite routes and nearby options. | More relevant and intuitive app experience. | “You last travelled on this route to reach the Lake” |
| AI-Powered Demand Forecasting | Analyzes usage patterns to forecast rider demand. | Improves route scheduling and fleet allocation. | “Use this alternate route to save 5 mins.” |
| Accessibility Support via AI | Recognizes user needs and adjusts interface accordingly. | Ensures inclusivity and better UX. | “Use Talkback to use accessibility.” |
Transit is one industry among several putting AI to work. Our guide to the use cases of generative AI in the travel industry covers the wider set, from itinerary generation to disruption recovery, and what each one takes to build.
How SolGuruz Approaches Transportation App Builds
Transportation apps depend on reliable data, clear product requirements, and careful engineering decisions. At SolGuruz, we use a spec-driven and AI-assisted approach to reduce rework and build each part of the platform around clear technical requirements.
We have been building web and mobile products for travel and mobility clients since 2016, and most of them are still growing with us. Clutch review with 5.0 rating for SolGuruz web platform and mobile app development for a travel experiences company
1. Confirm Data Access Before Scope
Discovery ends with a clear answer on GTFS and GTFS Realtime availability for every target city.
Projects that skip this step can discover major data gaps months into development.
2. Build Offline From the First Release
Saved routes, cached schedules, and downloaded map tiles are planned from version one, not added later.
This keeps the app useful in underground stations, rural areas, and places with weak connectivity.
3. Use Spec-Driven Development
We define features, data flows, API contracts, and edge cases before development begins.
This gives developers and stakeholders a shared technical reference and reduces changes during implementation.
4. Use AI-Assisted Engineering
AI tools help with code generation, test cases, documentation, data mapping, and development workflows.
We use AI to speed up engineering work while keeping architecture, security, and final decisions under human review.
5. Design for Real Transit Conditions
We test against real-world problems such as stale feeds, missing GPS data, service disruptions, and poor connectivity.
Important: The goal is to build a transportation app that remains useful when the underlying transit network is not perfect.
The Bottom Line
Transportation app development turns on one question you can answer in week one. What data can you actually get, and on what timeline?
Everything else follows from it. Feature scope, arrival accuracy, which cities you can launch in, and whether your first release is a real product or a schedule viewer.
Start with one city and one mode. Prove the feed pipeline and the offline layer work, then expand once riders are using it.
If you know which cities and modes you are building for, contact us .
FAQs
1. How much does transportation app development cost?
A single-city transit app runs $25,000 to $45,000. Multimodal builds reach $80,000. Fare collection and agency dashboards push it higher.
2. How long does it take to build a transportation app?
A single-city build ships in 3 to 5 months. Multimodal takes 5 to 8. GTFS Realtime approval timelines sit outside your control and can add weeks.
3. What is GTFS and do I need it?
GTFS is the open standard transit agencies use to publish schedules and stops. You need static GTFS for timetables and GTFS Realtime for live vehicle positions.
4. Can a transportation app work offline?
Yes, and it should. Saved routes, downloaded schedules and cached maps have to live on the device, because underground stations and rural corridors both break a connection.
5. What is the hardest part of building a transportation app?
Getting reliable live data. Static schedules are widely published. Live vehicle positions often are not, and quality varies enormously between agencies.
6. Do I need fare collection in the first release?
Usually not. Journey planning and live arrivals prove the product. Fare collection brings PCI DSS and farebox reconciliation, so it belongs in phase two.
7. How do transportation apps make money?
Freemium tiers, in-app advertising, and partnerships or licensing deals with transit authorities. Agency contracts are the most reliable of the three.
8. What is NEMT and how is it different?
Non-Emergency Medical Transportation. It handles scheduled medical trips with eligibility checks and insurance billing, so the build centers on booking and compliance rather than live arrivals.
How we Work
